Standard Equipment
- Siemens 828D ShopTurn Touchscreen Control.
- Hydraulic 200mm 3 Jaw Chuck.
- Sauter ‘German’ VDI Turret.
- Parts Catcher.
- Through Tool and Flood Coolant.
- Remote Electronic Handwheel.
- USB Port.
- Networking.
- Renishaw Automatic Tool Setting Arm.
- Swarf Conveyor & Bin.
- Hydraulic Tailstock.
Optional Equipment
- Collet Chuck.
- Hydraulic 250mm 3 Jaw Chuck.
- Bar Puller.
- Barfeed Units.
- Offline Programming.
- Contour Handwheel (wind the handwheel to run through the program).
- Advanced Swarf
Management System.

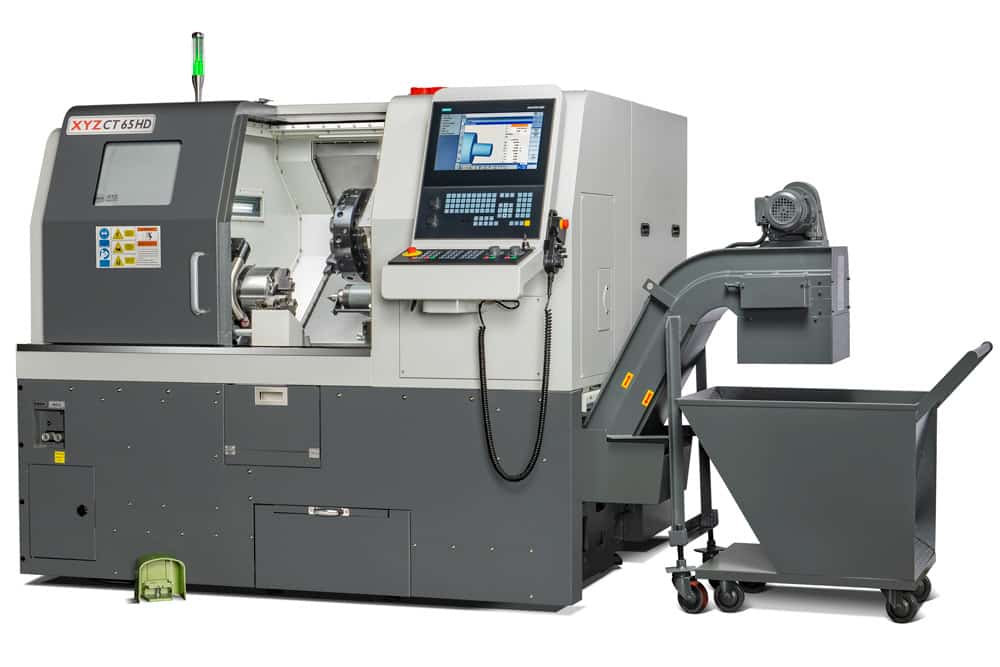

The XYZ Compact Turn 65 HD Turning CentreWe have been selling the popular Compact Turn 52 and 65 for many years, with over 300 machines in the field, this BOX WAY machine has proven to be a great workhorse, but due to customer demand we have increased the maximum turned length from 260mm to 510mm. Each machine comes with a wide range of standard equipment normally offered as options on competitor machines, these include hydraulic chuck,12 station VDI Sauter Turret, Renishaw tool setting, swarf conveyor and tailstock. The control is the latest Siemens Touch Screen 828D with ShopTurn conversational control making the XYZ CT 65 HD ideal for both experienced and novice CNC users.The XYZ CT 65 HD is perfect for the subcontractor who doesn’t know what job or material is coming next. This 2 axis machine and a CNC Milling machine or VMC can often be a more versatile and cost effective combination, than buying a Turning Centre with Y axis or live tool turret.
| Conforming to ISO 13041 | |
| Positional accuracy | +/- 5 microns |
| Repeatability | +/- 2 microns |
| Cutting accuracy over 100mm | 10 microns |
| Geometric accuracy over 100mm | 10 microns |
