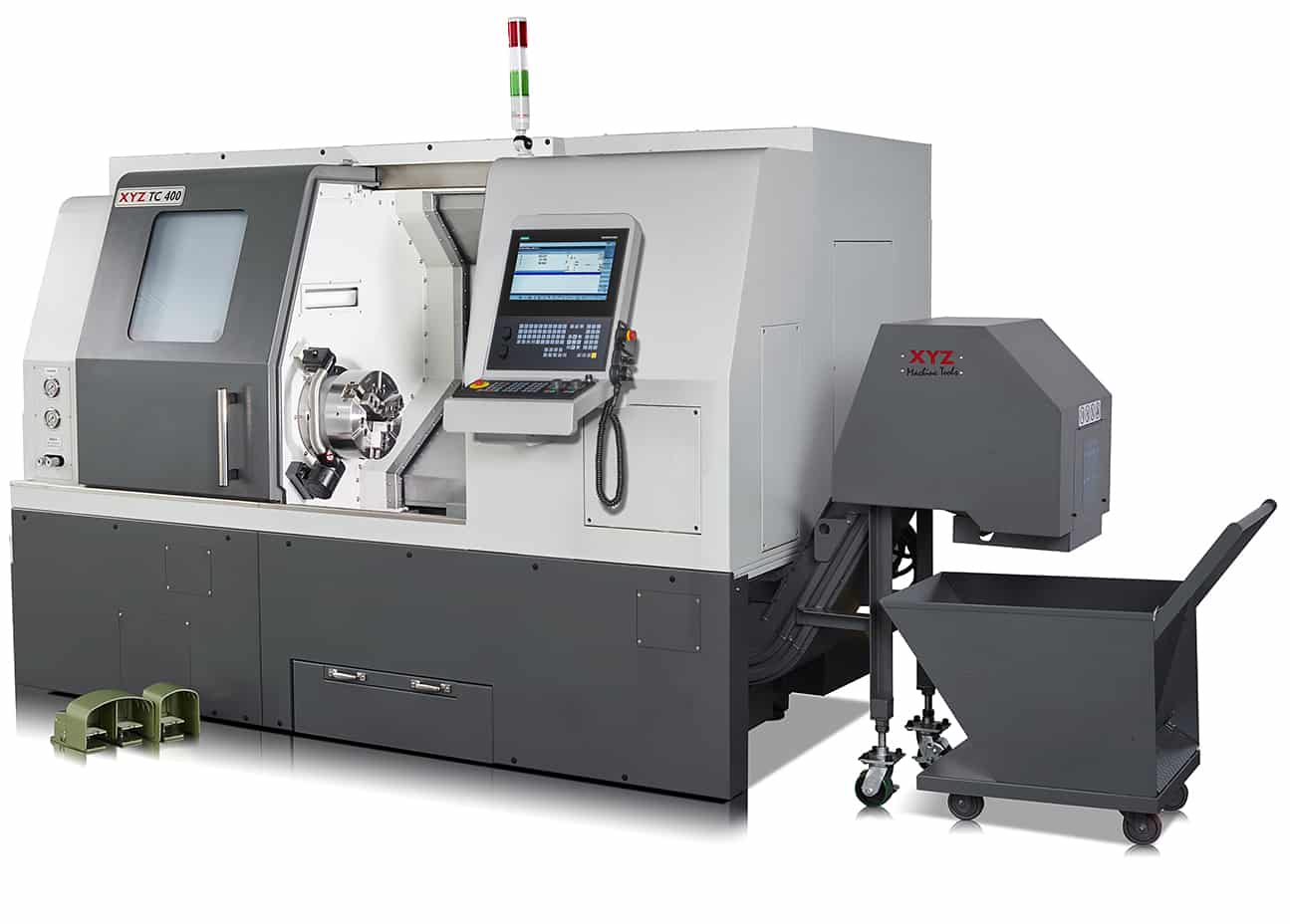

XYZ TC 400

XYZ TC 400

Standard Equipment

  • Siemens 828D ShopTurn Control.
  • Hydraulic 300mm 3 Jaw Chuck (380mm optional).
  • Sauter ‘German’ VDI Turret.
  • Automatic Tool Setting Arm.
  • Swarf Conveyor & Bin. Hydraulic Tailstock.
  • Through Tool Flood Coolant. Remote Electronic Handwheel.
  • USB Port.
  • Networking.
XYZ TC 400SPINDLE 43 HP / 32 kW 300mm CHUCK (380mm optional*) 91 mm SPINDLE BORE 78 mm BAR CAPACITY 3300 RPM
Conforming to ISO 13041
Positional accuracy+/- 5 microns
Repeatability+/- 2 microns
Cutting accuracy over 100mm10 microns
Geometric accuracy over 100mm10 microns
Optional Equipment
  • Collet Chuck.
  • Bar Puller.
  • Barfeed Units.
  • Offline Programming.
  • Contour Handwheel (wind the handwheel to run through the program).
  • Advanced Swarf Management System.
The TC 400 is the largest capacity turning centre in the XYZ range.This large capacity workhorse of a turning centre comes complete with standard equipment that includes hydraulic chuck,12 station turret, Renishaw tool setting, swarf conveyor and tailstock. Many of these options are costly extras with competitors machine tools. The latest Siemens 828D ShopTurn conversational control makes it ideal for both experienced and novice CNC users. For a subcontractor that doesn’t know what job is coming in next week this 2 axis machine and the CNC milling machine or a VMC is often a more versatile and cost effective combination than buying a Turning Centre with Y axis or live tooling turret.
