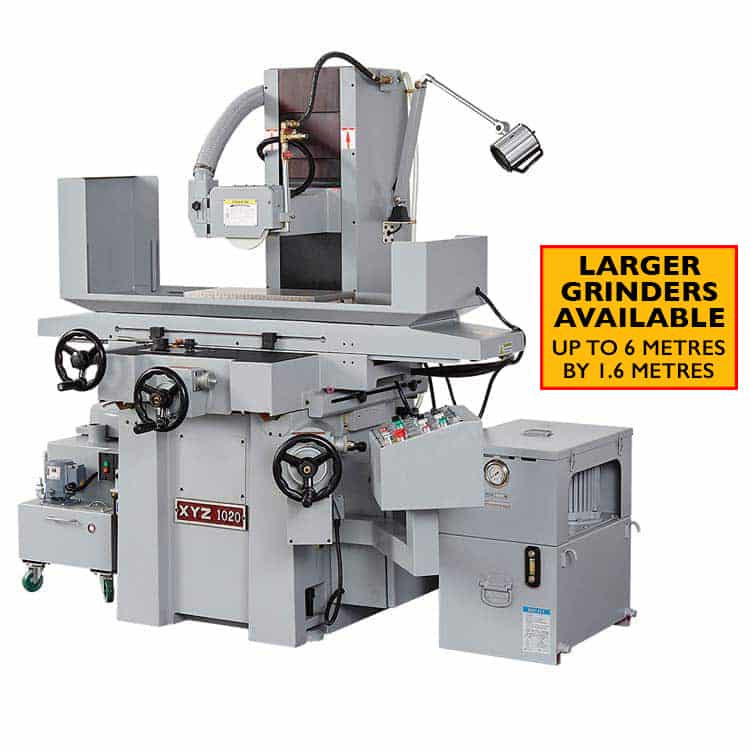

Surface Grinders

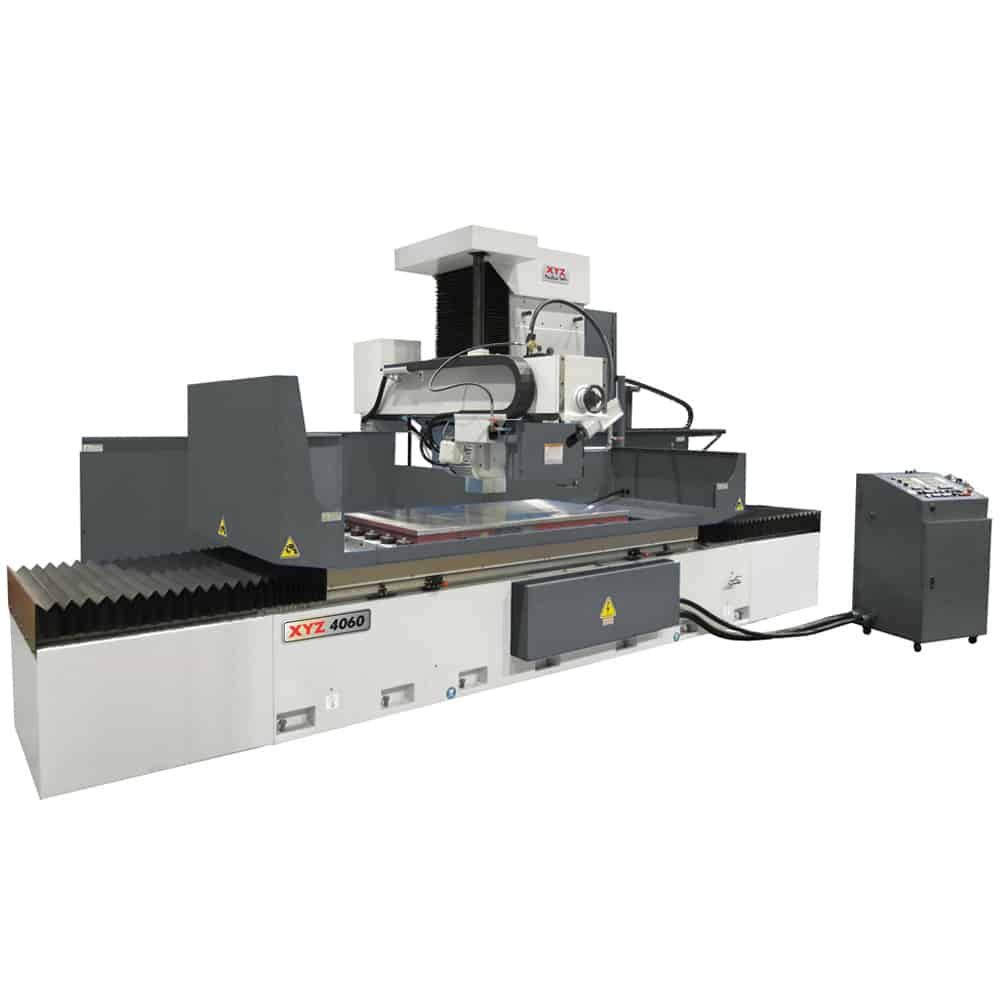

Surface Grinders - Image 2

Surface Grinders

Magnetic Chuck with demag
Separate Hydraulic Tank
Separate air and coolant tank
Incremental Cross Feed
Halogen Work Lamp
Lubrication System
Manuals
CE Approval

Models Available

XYZ 1020   XYZ 2040
XYZ 1224   XYZ 2060
XYZ 1632   XYZ 2480

Description

Standard Equipment

Electro Magnetic Chuck
Demaginitiser
Coolant
Dust Extraction
Worklight
Wheel Dresser

Optional Equipment

Digital Readout
Filter Coolant Systems
Manual Overhead Wheel Dresser
Automatic Incremental NC Down-feed

Product Brochure

Specification

	XYZ 1020 Surface Grinder	XYZ 1224 Surface Grinder	XYZ 1632 Surface Grinder	XYZ 2040 Surface Grinder	XYZ 2060 Surface Grinder	XYZ 2480 Surface Grinder
Spindle	2HP	5HP	5HP	10HP	10HP	10HP
Spindle Speeds	3,000 rpm	3,000 rpm	3,000 rpm	1,450 rpm	1,450 rpm	1,450 rpm
Hydraulic Motor Power	1HP	1HP	1HP	3HP	3HP	5HP
Magnetic Chuck Size	250 x 500mm	304 x 609mm	406 x 812mm	500 x 1050mm	500 x 1524mm	600 x 2050mm
Max Grinding Length	500mm	609mm	860mm	1000mm	1500mm	2050mm
Max Grinding Width	250mm	304mm	406mm	500mm	500mm	600mm
Max table surface to spindle centre	500mm	508mm	558mm	600mm	600mm	760mm
Logitudinal Travel (Hydraulic)	558mm	660mm	860mm	1150mm	1650mm	2150mm
Logintudinal Feeds	5 – 25M/min	5 – 25M/min	5 – 25M/min	5 – 25M/min	5 – 25M/min	5 – 25M/min
Cross Travel	250mm	304mm	406mm	550mm	550mm	660mm
Cross Travel – Auto increment	0.15mm – 15mm	0.1mm – 10mm	0.1mm – 10mm	1mm – 20mm	1mm – 20mm	0.15mm – 15mm
Cross Feed Handle Graduation	0.02mm	0.02mm	0.02mm	0.02mm	0.02mm	0.02mm
Cross Feed Travel per revolution	4mm	5mm	5mm	5mm	5mm	4mm
Down Feed Handle Graduation	0.01mm	0.01mm	0.005mm	0.005mm	0.005mm	0.01mm
Down Feed Travel per revolution	2mm	2mm	2mm	2mm	2mm	2mm
Grinding Wheel Diameter	180mm	355mm	355mm	355mm	355mm	405mm
Grinding Wheel Width	12mm (19mm Max)	38mm	50.8mm	38mm	38mm	50mm
Grinding Wheel Bore	31.75mm	127mm	127mm	127mm	127mm	31.75mm
Floorplan (L x D x H)	2250 x 1450 x 2000mm	2550 x 1650 x 2060mm	2980 x 1950 x 2150mm	TBC
Machine Weight	1550Kgs	1700Kgs	2300Kgs	5700Kgs	7200Kgs	9500Kgs
Power Requirements	20Amp 3 Phase Supply		30Amp 3 Phase	TBC
Air Requirements	No Air Required	No Air Required	No Air Required	No Air Required	No Air Required	No Air Required
