| XYZ 1500 | XYZ 2000 | XYZ SLV | |
|---|---|---|---|
| Spindle | 3HP Variable Spindle Speed | 3HP Variable Spindle Speed | 5HP Variable Spindle Speed |
| Spindle Speeds | 60 – 3500 RPM | 75 – 4200 RPM | 70 – 3600 RPM |
| Speed Ranges | 2 Ranges | 2 Ranges | 2 Ranges |
| Spindle Taper | R8 (ISO 30 Optional) | R8 (ISO 30 Optional) | ISO 40 |
| Quill Diameter | 86mm (3.38″) | 86mm (3.38″) | 86mm (3.38″) |
| Table Size | 1069mm X 228mm (42″ x 9″) | 1270mm X 254mm (50″ x 10″) | 1473mm X 305mm (58″ x 12″) |
| T Slots | 3 off | 3 off | 3 off |
| T Slot Size | 15.9mm (5/8″) | 15.9mm (5/8″) | 15.9mm (5/8″) |
| X Axis Table Travel | 660mm (26″) | 750mm (29.5″) | 1000mm (39.4″) |
| Y Axis Table Travel | 285mm (12″) | 384mm (15″) | 410mm (16.1″) |
| Knee Vertical Travel | 406mm (16″) | 406mm (16″) | 413mm (16″) – Powered |
| Quill Travel | 127mm (5″) | 127mm (5″) | 127mm (5″) |
| Ram Travel | 305mm (12″) | 450mm (17.7″) | 450mm (17.7″) |
| No of Quill Feeds | 3 | 3 | 3 |
| Slideway Type | Hardened & Ground Dovetail. | Hardened & Ground Dovetail. | Hardened & Ground Boxway |
| Footprint (without travels) | 1600mm X 1450mm | 1880mm X 1672mm X 2212mm | 2173mm X 1818mm X 2302mm |
| Floorplan (includes table travels) | 2167mm X 1670mm | 2621mm X 1902mm X 2222mm | 3163mm X 2028mm X 2302mm |
| Working Height (without riser blocks) | 2220mm | 2175mm | 2330mm |
| Machine Weight | 925Kg | 1,250Kg | 1,850Kg |
| Power Requirements | 7.5A | 10A | 13A |
| Air Requirements | 6 bar (220 L/min) | 6 bar (220 L/min) | 6 bar (220 L/min) |

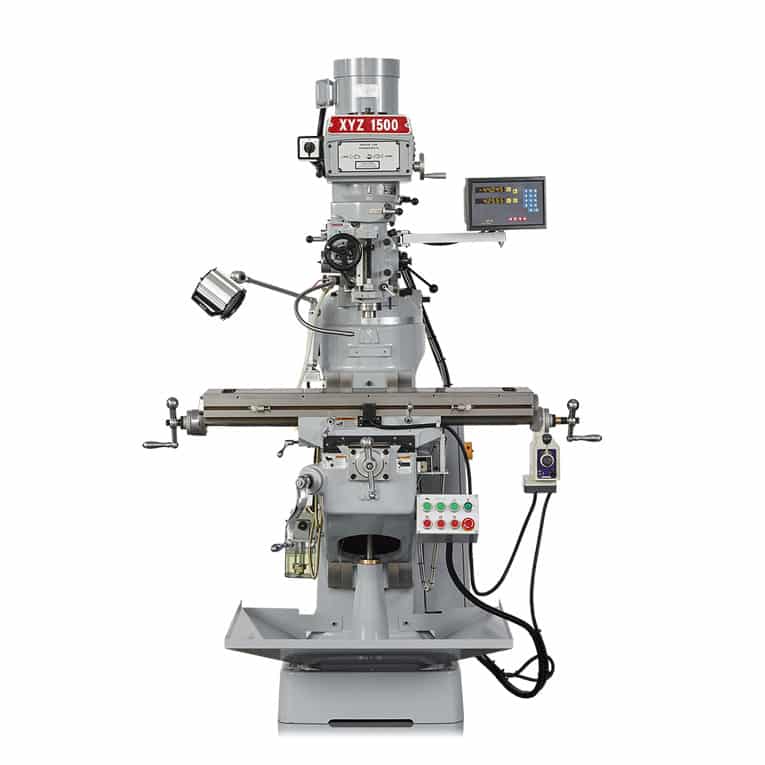

XYZ 1500
3HP VARIABLE SPEED HEAD
42” x 9” (1069 x 228 mm) TABLE
26” x 12” (660 x 305 mm) TRAVEL
